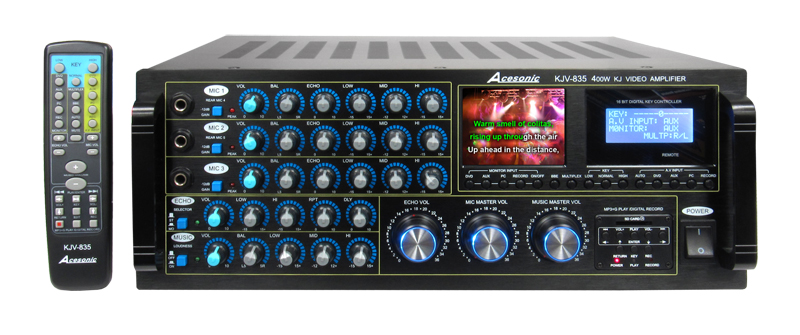

Acesonic KJV-835 400W Karaoke Mixing Amplifier with 3.5" LCD Monitor with Recorder and MP3+G Player World's First Amp with LCD Built-in
Overview
Feedback
The KJV-835 is the hottest product from Acesonic! The world's first karaoke mixing
amplifier with a built-in 3.5" LCD display and MP3+G playback
and WAV recorder. The Acesonic Professional Rack-mountable KJV-835 400-Watt Mixing
Amplifier is designed with KJs and serious karaoke singers in mind. It's
patented design will forever change how you will be using your karaoke mixing
amplifiers in the future.
Exclusive Features:
Starting from its unique: built-in dual A/V outputs switches with a
3.5" LCD monitor. The first A/V switch is to set the output
for the singer's monitor and the second
A/V switch is to set the output of the built-in LCD monitor and the headphone
jack. The key of the design is the 2nd A/V switch that makes the amplifier
unique. In the old days, it was impossible to cue the next song from a 2nd A/V
source when you only have 1 input source which the singer is using. Now with the
2nd A/V output to LCD screen, you can either monitor what the singer is
seeing or you can get the next song ready in the background while the singer is
performing. You can seamlessly play your gigs continuously without any downtime
for switching music track. Alternatively, if you don't have a TV ready when you
are performing, you can just use the 3.5" LCD monitor to see your karaoke
tracks.
The second unique design of this amplifier is its built-in WAV recorder and
player module. Now you can digitally record all of your performances using the Acesonic KJV-835 Mixing Amplifier. Whether you are singing,
speaking or playing instruments, you can record your performances to the SD card
and forever preserve your best performance for you or your singers. You can play
the recorded WAV tracks on your PC or on the amplifier, or post it online!
You can even convert the WAV to MP3. The MP3+G
module also plays MP3+G files stored in SD Cards. You can take your downloaded or
converted MP3+G karaoke tracks and play them on the KJV-835 mixing amplifier.
When you record your singing while playing MP3+G tracks, it will not only
record the audio track but also record the graphic track at the same time.
When you playback your recorded performance, you will see if your singing is
following with the lyrics on the screen. Another world's first invention!
Finally, the KJV-835 Mixing Amplifier has a built-in USB port. You can play your
music and record your performance digitally from and to your PC or Mac. You can
turn your laptop into a karaoke player and connect it to the mixing amplifier
for audio output. Not only it will play the music from your laptop, it will send
the performance back to the PC using the USB port. You can instantly capture the
audio signal in either MP3 or WAV format and share with your friends.
Features:
400 Watts Max Power Output
3.5" Built-In LCD Screen to monitor a 2nd A/V source
Headphone Output for 2nd A/V source
LCD Status Screen to Display: Key, Main Input Source, Monitor Input Source and Multiplex
Built-in MP3G Player Module
Records your singing to WAV
4 Audio/Video Inputs: DVD/AUX/PC/MP3G Module
2 Component Video Inputs: DVD/AUX and 1 Component Video Output
1 RCA Audio/Video Output
1 PC Input (Composite Video + USB Port)
Auto Input Selector
L/R Multiplex Channel Output Selector
Music Low, Mid, High, Balance, Volume Controls
Microphone Delay, Repeat, Echo, Low, High Volume Controls
Microphone Volume Controls for Low, Mid, High, Echo, Balance, Volume for
individual microphones
3 Front & 2 Rear 1/4" Microphone Inputs
Master Microphone Control
Master Echo Control
Master Volume Control
4 Audio Outputs (Record Out, Line Out, Subwoofer Out (Music/ Mixing), Mic Out (High/Low)
2 Banana Plug Speaker Connectors
115/230 Voltage for Worldwide Compatible
Built-in BBE Sonic Maximizer for both vocal and music
Temperature-Active, Ultra-Low-Noise Fan for non-stop operation
2 SpeakOn Speaker Connectors
Pre-Input and Pre-Output for External Effort
100W AC Power Outlet
Specifications:
Integrated USB Audio Solution using C-Media CM106 Audio I/O Controller works for PC and Mac
Output Power:
200W + 200W RMS (8 ohms)
300W + 300W RMS (4 ohms)
Total Harmonic Distortion: ≤ 0.5%
Input Impedance: 47K
Input Sensitivity: ≤ 250mv
Max Input Signal: 2.5Vp-p
Signal to Noise: ≥ 80dB
Treble Adjustment: ±10dB
Bass Adjustment: ±10dB
Mic Treble Adjustment: ±10dB
Mic Mid Adjustment: ±8dB
Mic Bass Adjustment: : ±10dB
Key Control Range +/- 6 Half Tones
Frequency Response: 20Hz-20KHz (±3dB)
Microphone Input Sensitivity: ≤ 25mV
Echo Delay: ≥ 200ms
Speaker Wattage Impedance: 4 Ohm - 8 Ohm
Voltage: AC 115V - 230V Manual Select
Dimensions: 17"(W) x 6.5"(H) x 14"(D)
Weight: 33 lbs.
1 Year Manufacturer Warranty
Designed in U.S.A.
Package Includes:
Full Functions Remote Control
16 ft USB Cable
RCA Cable
Power Cord
USB Driver Disc
2 AAA Batteries
Rack Mount Kit
Acesonic KJV-835 (PDF,
10.3MB) (Right click, save as...)
