AKG WMS45 Perception Wireless Presenter Set

The sound of your voice perfectly reproduced by the Perception Wireless Presenter Set: the inconspicuous CK 99 lavalier microphone clips on quickly and easily, and provides optimum intelligibility for theater performances, presentations, or talk shows. Requiring little attention, it allows you to focus 100% on your presentation.

The package contains an SR 45 receiver, PT 45 bodypack transmitter, universal power supply with US/UK/EU adapter, CK 99 L lavalier microphone, and one AA size dry battery.

The CK 99 L provides a natural sound, with a slight rise above 10 kHz for added clarity. Its cardioid polar pattern and bass rolloff combine to suppress unwanted ambient noise.

Low-profile, cost efficient clip-on microphone for applications including houses of worship, lecturers, etc. Connects to AKG bodypack transmitters.

Features:

• 30 MHz selection bandwidth (depending on local frequency plans)
• 8 hours of operation with a single AA size battery
• Speech optimized CK 99 lavalier microphone
• Compatible with all AKG MicroMics
• Low battery indicator
• Smallest and lightest bodypack transmitter in its class
• Inconspicuous clip-on microphone
• Natural, airy sound
• High ambient noise rejection

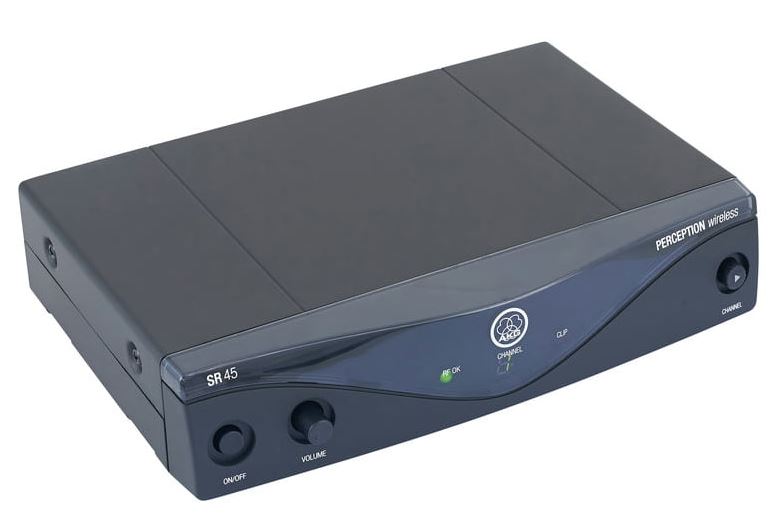

SR 45 Specifications:

• Carrier frequency range: 500 - 865 MHz
• Audio bandwidth: 40 - 20,000 Hz
• THD: typ. 0,8 % (at 1 kHz)
• Signal/noise ratio: typ. 105 dB(A)
• Modulation: FM
• Audio outputs: Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV rms
• Squelch threshold: -100 to -70 dBm adjustable
• Dimensions: Width: 200 mm (7.9 in.); height: 44 mm (1.7 in.); depth: 150 mm (5.9 in.)
• Net weight: 360 g (12.7 oz.)

PT 45 Specifications:

• Carrier frequency range: 500 - 865 MHz
• Audio bandwidth: 40 - 20,000 Hz
• THD: typ. 0,8 % (at 1 kHz)
• Signal/noise ratio: typ. 105 dB(A)
• Modulation: FM
• RF radiation: 10 mW
• Power supply: 1x 1.5 V AA size battery
• Battery life: 10 hours typ.
• Dimensions: Width: 60 mm (2.4 in.); height: 74 mm (2.9 in.); depth: 30 mm (1.2 in.)
• Net weight: 60 g (2.1 oz.)

CK 99 L Specifications:

• Polar pattern: Cardioid
• Frequency range: 15 to 18,000 Hz
• Sensitivity: 8.8 mV/Pa (-41 dBV)
• Max. SPL: 118 dB (k=1 %)
• Equivalent noise level: 34 dB-A
• Signal/noise ratio (A-weighted): 60 dB
• Impedance: 200 ohms
• Recommended load impedance: >2000 ohms
• Supply voltage: 1.5 to 10 VDC or 9 to 52 V phantom power to IEC 61938 using MPA V L
• Powering: <2 mA
• Connector: 3-pin mini XLR
• Cable: 1.6 m (5 ft. 4 in.)
• Finish: matte black
• Net weight: 2.5 g (0.08 oz.)
• Shipping weight: 115 g (4 oz.)
