Acesonic UHF-BBSI30 Rock-N-Roll Wireless Microphone With Stand and Heavy-Duty Mobile Base (Yellow)

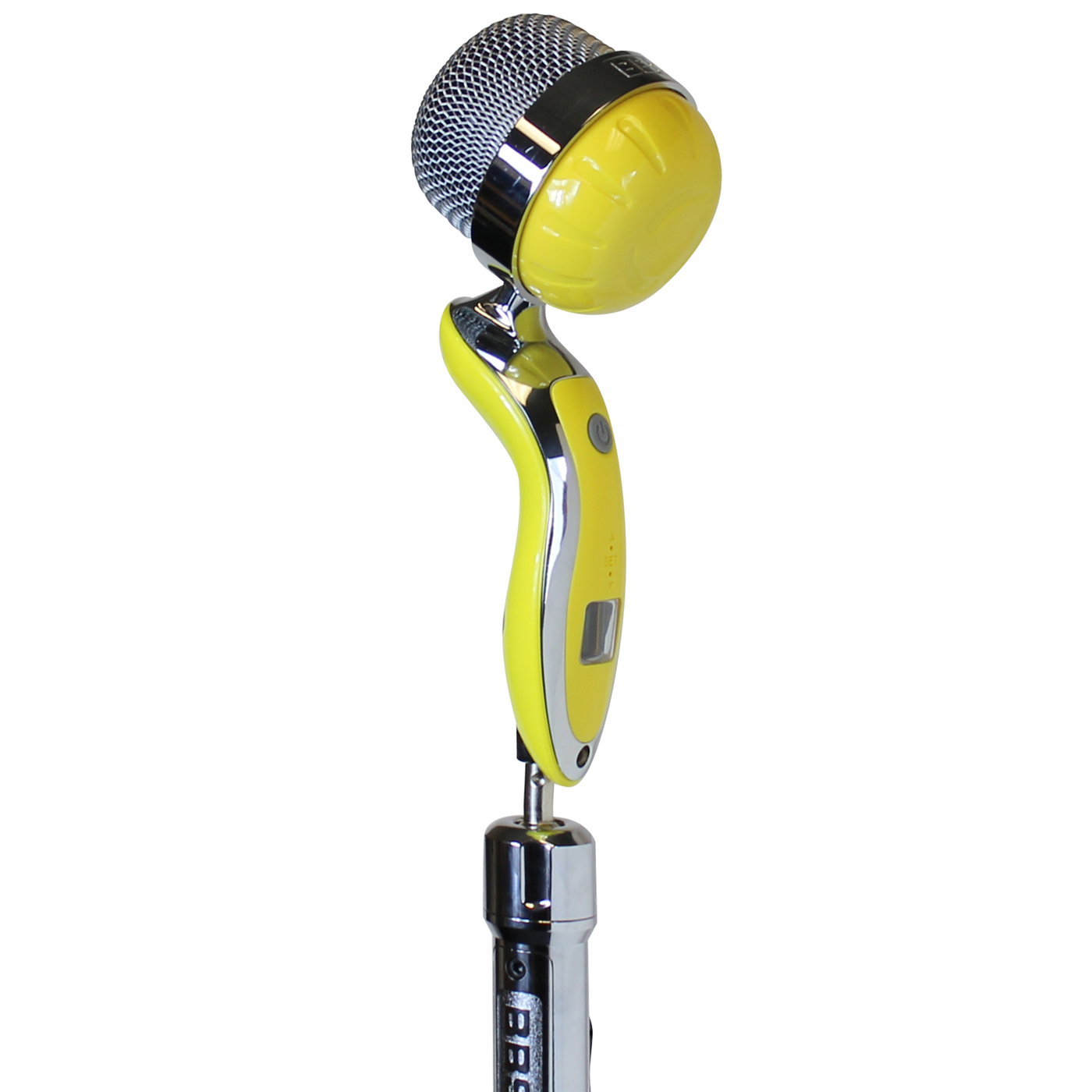

The Acesonic BBS-i30 Rock-N-Roll Wireless Microphone is a unique device for those looking for the best quality sound and the ability to use the microphone and stand as a prop in your performance. With its stylish design and bright colors, this microphone is for you! The bottom of the stand is equipped with a spherical bearing that allows the stand to swivel all around and return to a standing center position when let go. The microphone is wireless so cables won't get in the way as you rock out on stage.The heavy base holds things down during performances. Microphones are available in orange, yellow, and gold.

Features:

• Swivels at the base and where the microphone connects to the stand
• Allows you to dance and use the microphone and stand as a prop during performances
• 100 UHF Frequency Spots - PLL digital lock with automatic signal selection
• Highlt selective signal-locked loop, image rejection and derivative frequency interference
• Circuit with digital frequency divider, phase and comparative frequency-locked
• Multipath signal differential comparator, stepper analysis enhances intermodulation performance
• Built-in anti-fake radiation isotropic antenna transmission
• Weight:
  • Microphone: 3.55 lbs
  • Stand: 4.05 lbs
• Mobile Base: 41 lbs

Specifications:

Wireless Receiver:

• Carrier Frequency Range: 660-690MHz
• Frequency oscillation mode: PLL Module Locked Loop Design
• Channels: 100
• Frequency Response: 50Hz ~ 18KHz
• Working Distance: 100 ft
• Frequency Space: 300KHz
• Bandwidth: 30MHz
• Carrier Wave Stability: ±5PPm ≤10KHz
• Image Interference Radio: >80dB
• Signal-to-noise ratio: >60dB (1KHz-A)
• Sensitivity: -95dBm (12dB S/N AD)
• T.H.D (1KHz): <0.5%@1KHz
• AF Output Impedence: 2.2Ω
• Audio Output Level: -12dB
• Mute: Mute & Locked Loop Circuit
• Display: LCD + LED
• Operations Voltage: 8V DC, 1700mA
• Output Connector: Unbalanced TRS 6.3 Socket

Handheld Microphone:

• Dynamic Range: >110dB
• Stability: ±0.005%
• Frequency Deviation: ±44KHz
• Spurious Emissions: <-60dBc
• RF Output Power: 10mW
• Power Consumed: ≤100mA @ 3V
• Battery: UM3, AAA 1.5V x 2
• Display: LCD

Download Instruction Manual
